Pick your destination and find joy in the journey.

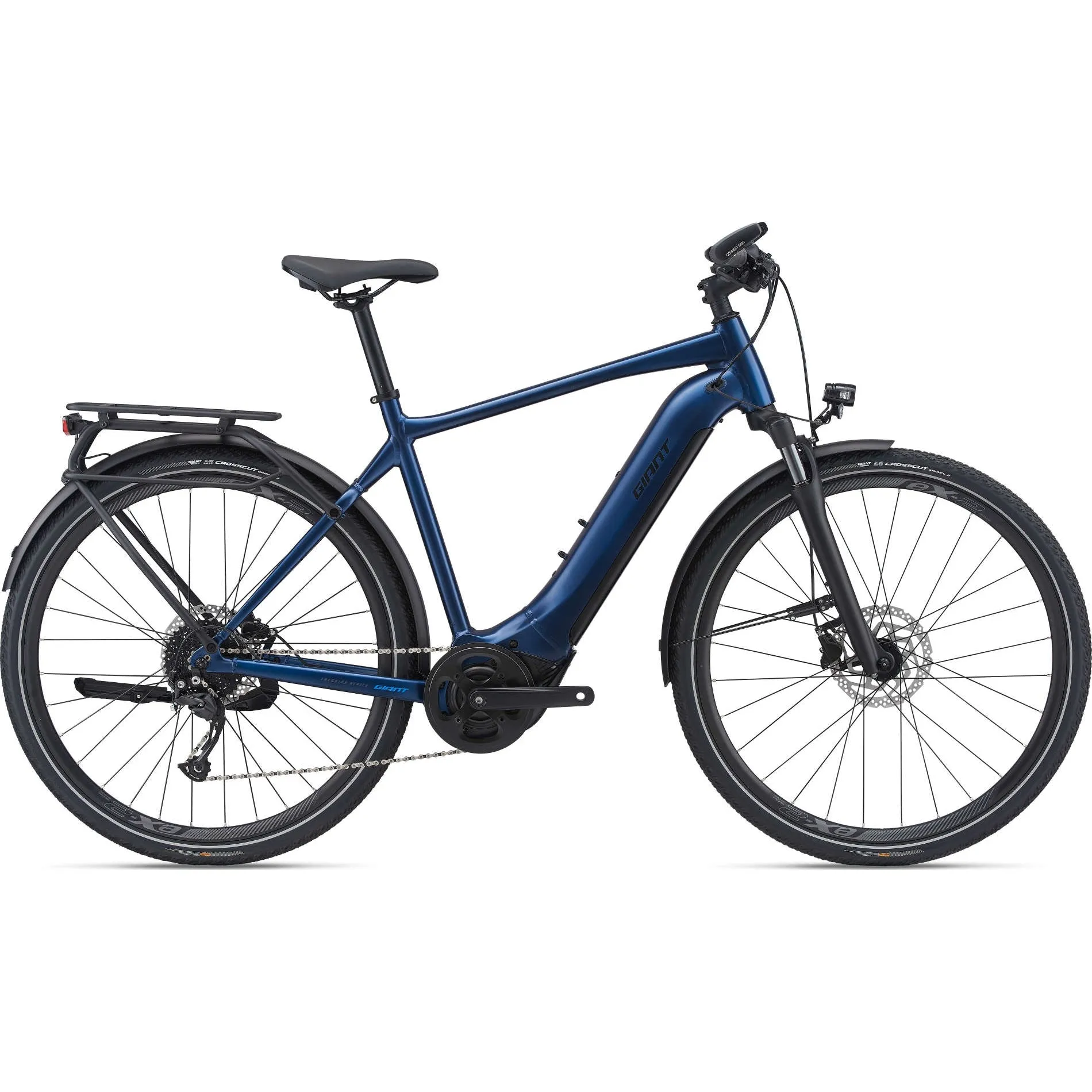

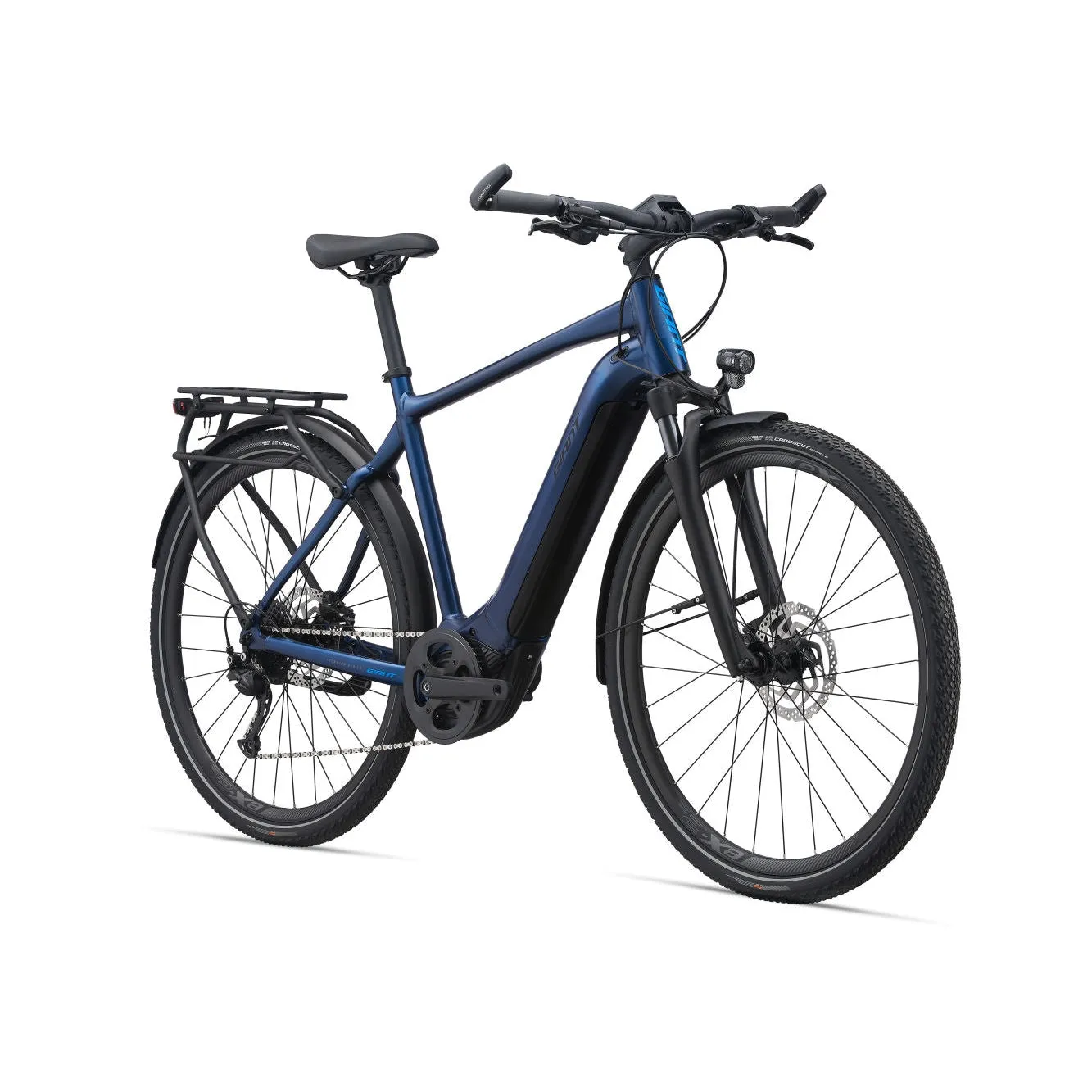

This versatile all-rounder electric bike is ideal for trekking, commuting or simply boosting the fun factor on any ride.
Overall stability
The ALUXX aluminum frameset and SyncDrive Life motor combine for smooth handling and acceleration on all types of roads from hills to flats.
Explore new routes
The RideControl EVO with on-board navigation helps riders find their way, and smartphone connectivity makes it easy to keep the battery charged.
Longer range
Explore E gives riders the freedom to ride farther with its EnergyPak Smart battery that delivers 500Wh of power.
Specifications
- Motor: SyncDrive Life, 60Nm, powered by Yamaha
- Controller: RideControl Ergo
- Display: RideDash Evo
- Battery: EnergyPak Smart 500Wh EnergyPak Plus range extender compatible
- Sizes: S, M, L, XL, XXL
- Colors: Metallic Navy
- Frame: ALUXX Aluminum, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount
- Fork: SR Suntour NEX E25 NLO DS 63mm travel
- Shock: N/A
- Handlebar: Giant Connect Riser 31.8x690mm
- Grips: Giant Contact Ergo Max Plus
- Stem: Giant Contact
- Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
- Saddle: Selle Royal Vivo Ergo Moderate
- Pedals: Aluminum Platform
- Shifters: Shimano Altus
- Front Derailleur: N/A
- Rear Derailleur: Shimano Alivio, 9-speed
- Brakes: Tektro HD-M275, hydraulic disc, 160/180mm
- Brake Levers: Tektro HD-M275
- Cassette: Shimano CS-HG200, 11-36T, 9-speed
- Chain: KMC e.9 Sport, e-bike optimized
- Crankset: Forged Alloy minimal Q-factor, 42T
- Bottom Bracket: N/A
- RimsGiant eX2, Tubeless Ready, 700c Aluminium
- HubsGiant eTracker, [F] 100x9mm QR [R] 135mm QR
- SpokesStainless steel
- TiresGiant Crosscut Gravel 2, 700x45c (622x45), Tubeless Ready, Reflex
- LightingAxa BlueLine 30Lux Steady E6 frontAxa BlueLine Steady E6 rear
- CarrierMIK rack. System bag & basket compatible
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (inch) | 17.1 | 19.1 | 21.1 | 23 |
| SEAT TUBE ANGLE | 74.0° | 73.0° | 73.0° | 73.0° |
| TOP TUBE LENGTH (inch) | 22.4 | 23.2 | 24 | 24.8 |
| HEAD TUBE LENGTH (inch) | 5.1 | 5.5 | 6.1 | 6.7 |
| HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° |
| FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| TRAIL (inch) | 3.6 | 3.6 | 3.6 | 3.6 |
| WHEELBASE (inch) | 43.8 | 44.1 | 45 | 45.8 |
| CHAIN STAY LENGTH (inch) | 17.9 | 17.9 | 17.9 | 17.9 |
| BOTTOM BRACKET DROP (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| STACK (inch) | 24 | 24.4 | 24.9 | 25.5 |
| REACH (inch) | 15.6 | 15.7 | 16.4 | 17 |
| STAND OVER HEIGHT (inch) | 29.3 | 30.5 | 31.8 | 33.2 |
| HANDLEBAR WIDTH (inch) | 27.2 | 27.2 | 27.2 | 27.2 |
| STEM LENGTH (inch) | 2.4 | 2.8 | 3.1 | 3.5 |
| CRANK LENGTH (inch) | 6.7 | 6.7 | 6.7 | 6.7 |
| WHEEL SIZE | 700C | 700C | 700C | 700C |
